Features Electricians Helper

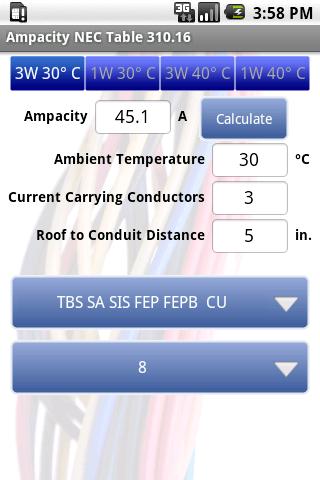

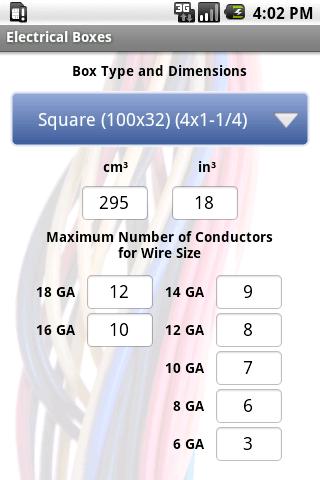

Electricians helper provides many useful calculators and converters for electricians and anyone working with power distribution.Both the NEC and CEC codes are covered.With Electricianβs Helper you can...β Calculate voltage, current and power in 3 phase delta and wye circuits.β Find the ampacity of a conductor as per the NEC and CEC tables.β Calculate the voltage drop in a line based on length, size, current and temperature.β Find the total box fill by entering the size and number of conductors, straps and clamps.β Find the maximum number of conductors allowed in a particular size raceway based on NEC and CEC rules.β Determine what size raceway is needed for a bundle of conductors.β Find the maximum bend radius of a conduit.β Find the maximum capacitor kvar for a motor and the current reduction obtained.β Find the motor current, heater current, breaker required, wire size, starter and conduit size for a particular 3 phase motor.β Find the full load current of an induction, squirrel cage, and synchronous motor.β Calculate voltage, current and kVA values for single and three phase transformers.β Find the locked rotor current of a single or 3 phase motor.β Do basic Ohmβs law calculations.β Find decimal equivalents of fractions.β Convert temperature scales.β Look up connector configurations.
Secure & Private
Your data is protected with industry-leading security protocols.
24/7 Support
Our dedicated support team is always ready to help you.
Personalization
Customize the app to match your preferences and workflow.

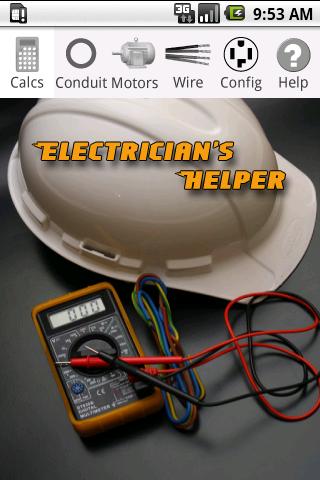

See the Electricians Helper in Action
Get the App Today
Available for Android 8.0 and above
